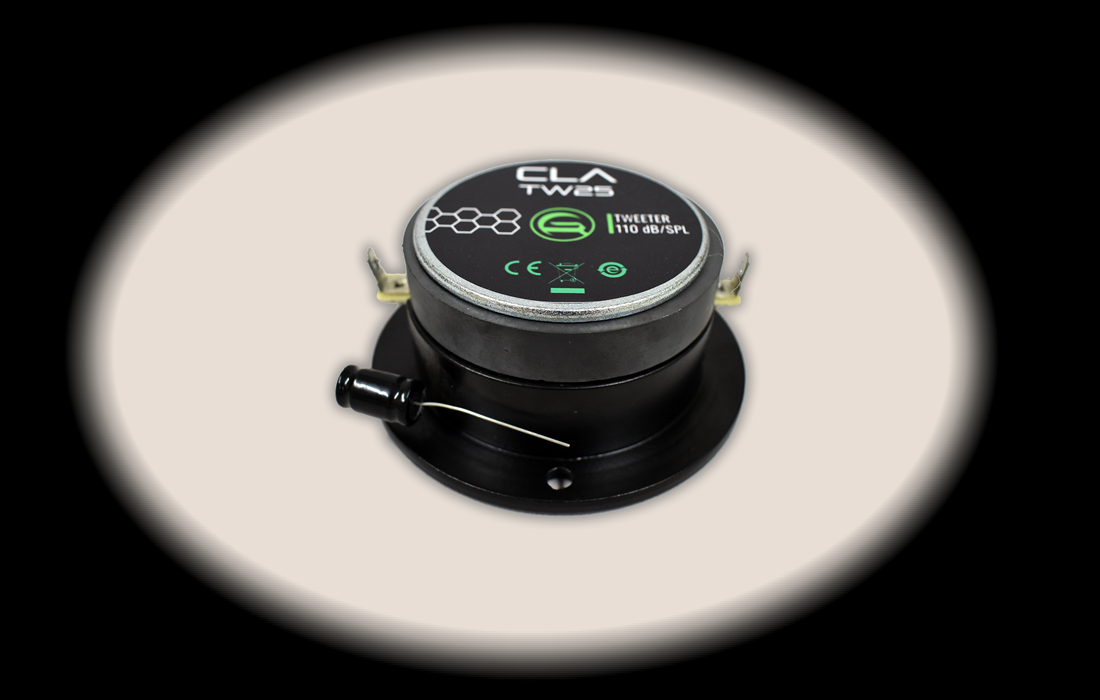

High Efficiency
Compression DriverNEW

Ferrite Motor

· High sensitivity (110 dB)
· Extended frequency range (2,5 -22 kHz)
· Titanium diaphragm
· Aluminium cover
· Designed for the high frequencies reproduction

Specifiche Tecniche
Impedenza: 4 Ohm
Sensibilità: 110 dB 1W @ 1m
Gamma di frequenza: 2,5 - 22 kHz
Taglio crossover consigliato: 3,5 kHz
Diametro bobina: 25 mm
Magnete: Ferrite
Bobina: Alluminio
Diaframma: Titanio

TECHNICAL SPECIFICATIONS
Nominal impedance: 4 Ohm
Sensitivity: 110 dB 1w @ 1m
Frequency range: 2,5 - 22 kHz
Recommended Crossover: 3,5 kHz
Voice coil diameter: 1"
Magnet: Ferrite
Winding material: Aluminum
Diaphragm material: Titanium

Specifiche di installazione
Diametro esterno: 95 mm
Altezza totale: 42 mm
Diametro di montaggio: 72 mm
Peso: 0.5 kg

Mounting SPECIFICATIONS
Overall diameter: 95 mm
Depth: 42 mm
Baffle cutout dimensions: 72 mm
Net Weight: 0.5 kg
