SubWoofer

Ferrite Motor

· FEA optimized
· Fat Foam Surround
· Paper cone
· Flat CCA
· Ferrite magnet
· Aluminium Frame
· Designed for the low frequencies reproduction

(BL)2/Re

(Tm)2/Ohm (Tm)2/Ohm 0

VOICE COIL

mm 0

Xmax

mm 0

Specifiche Tecniche
Impedenza: 2+2 Ohm
Diametro bobina: 65 mm
Magnete: Ferrite
Cestello: Alluminio
Bobina: 4 layer CCA

TECHNICAL SPECIFICATIONS
Nominal impedance: 2+2 Ohm
Voice coil Diameter: 65 mm
Magnet: Ferrite
Frame: Aluminum
Voice coil material: 4 layer CCA

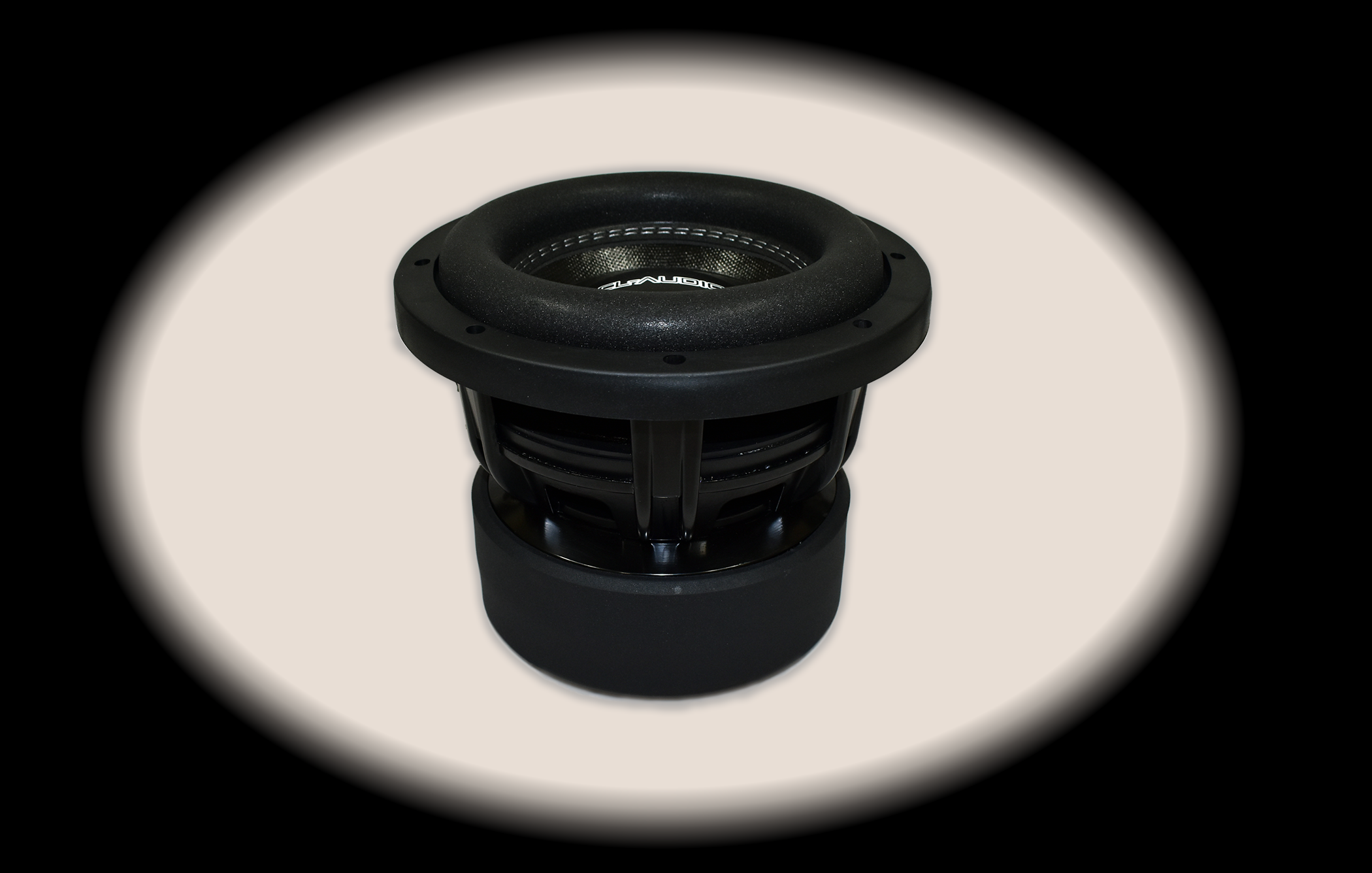

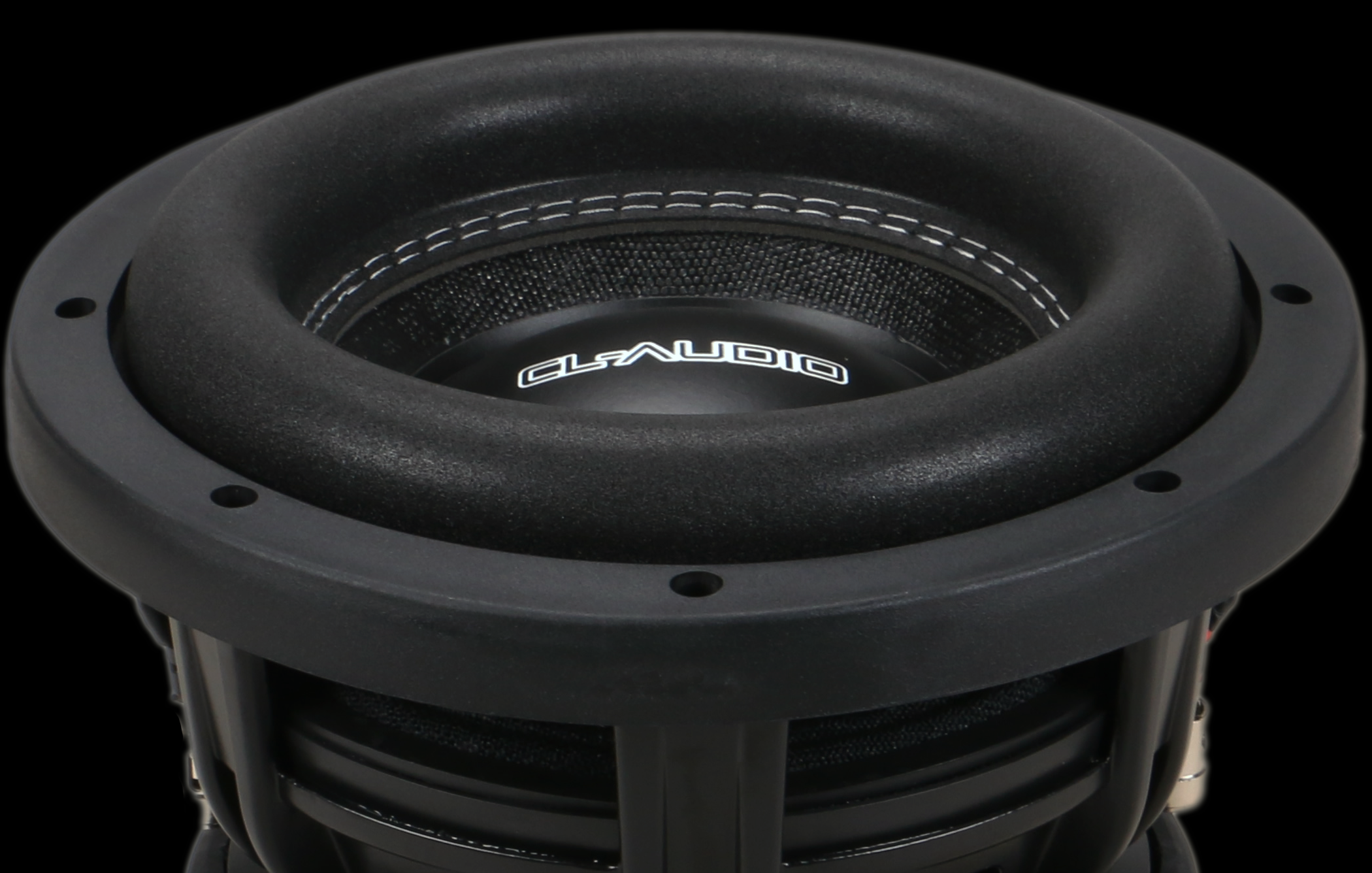

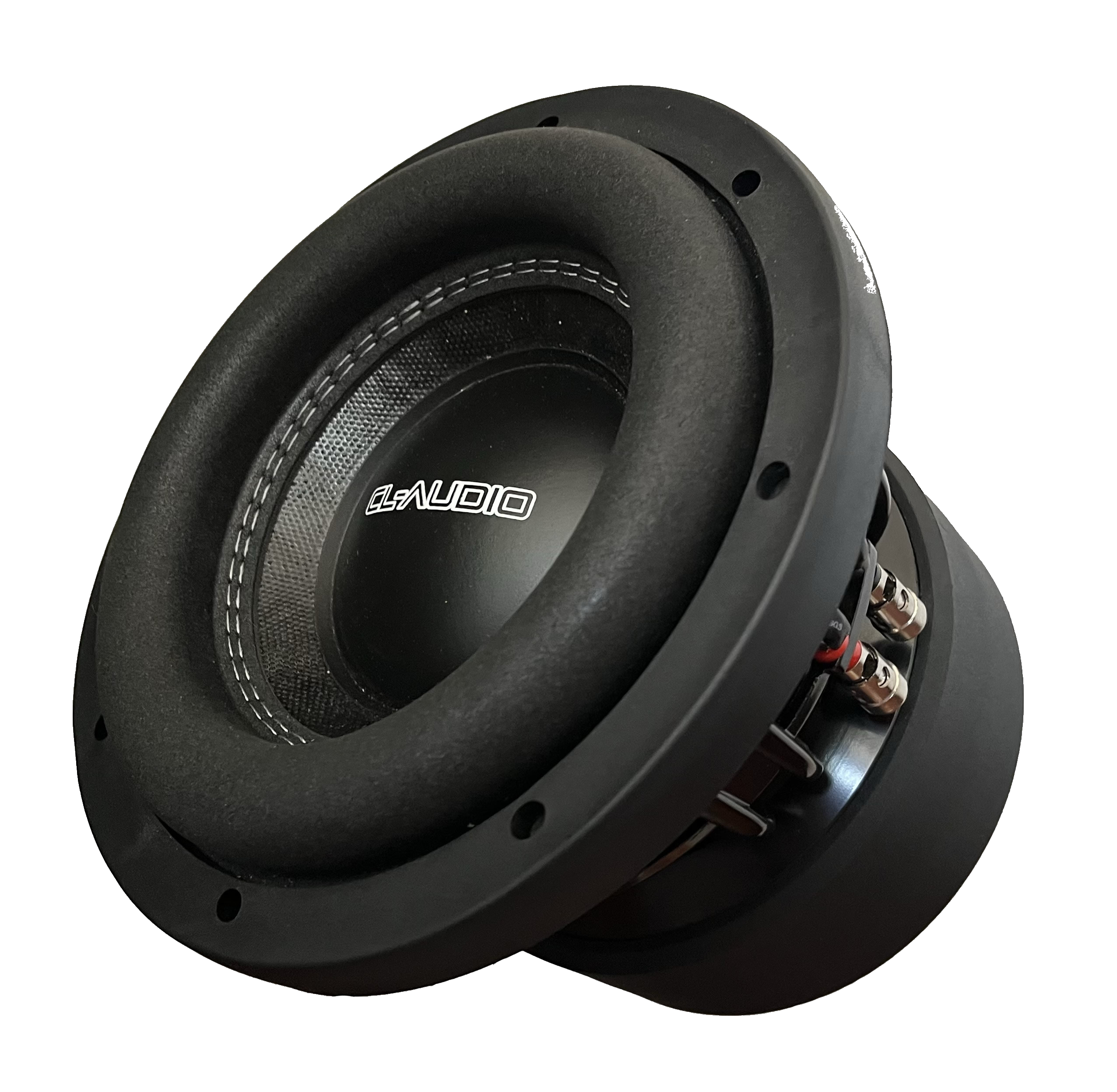

Mamba 8"



Specifiche di installazione
MOUNTING SPECIFICATION
Diametro esterno /Overall diameter: 221 mm
Altezza totale /Total depth: 176 mm
Diametro di montaggio /Mounting diameter: 185 mm
Profondità di montaggio /Mounting depth: 159 mm
Peso /Weight: 10,7 kg

Download DATA Sheet
